S20 Crash-Rated Bollards
The S20 crash rated bollard combines dependable protection with exceptional style and versatility. Designed for low-speed impact resistance, a wide range of sleeves are offered in decorative iron, steel, or stainless steel, to enhance the bollard’s visual appeal and complement any environment. With options that suit a wide range of architectural styles, this bollard is as much about elevating aesthetics as it is about providing security. It’s the perfect choice for select pedestrian areas, and urban settings where style and safety must coexist.
Domestic Manufacturing
100% Made in USA
Sleeve Versatility
Sleeves offered in decorative cast iron, powder coated steel or brushed stainless steel.
Crash-Rated
S20/P1 - rated to stop a 5,000 lb vehicle traveling at 30 mph with less than 1 meter penetration
Product Id:
S20-15GS
Interior Pipe Dia:
4"
Cover Material:
Ductile Iron
Top Type:
Globe Top
Body Type:
Plain
Crash Rating:
S20- 5,000 lb vehicle @ 20 mph
Penetration:
P1 - less than 1 meter beyond barrier
Country of Origin:
100% Made in USA, BABA Compliant
Recycled Content:
Minimum 90%
Product Id:

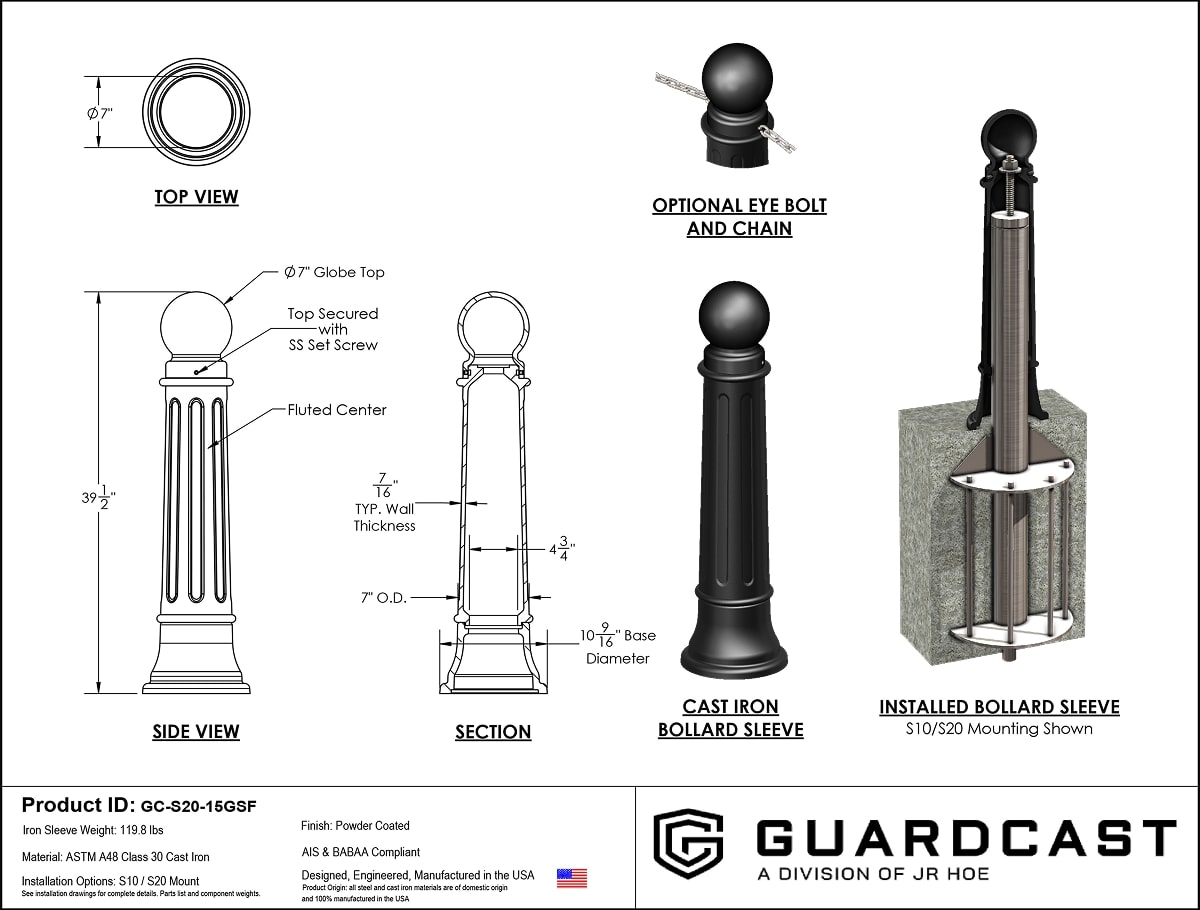

S20-15GSF
Interior Pipe Dia:
4"
Cover Material:
Ductile Iron
Top Type:
Globe Top
Body Type:
Fluted
Crash Rating:
S20- 5,000 lb vehicle @ 20 mph
Penetration:
P1 - less than 1 meter beyond barrier
Country of Origin:
100% Made in USA, BABA Compliant
Recycled Content:
Minimum 90%
Product Id:
S20-15QS
Interior Pipe Dia:
4"
Cover Material:
Ductile Iron
Top Type:
Queen Top
Body Type:
Plain
Crash Rating:
S20- 5,000 lb vehicle @ 20 mph
Penetration:
P1 - less than 1 meter beyond barrier
Country of Origin:
100% Made in USA, BABA Compliant
Recycled Content:
Minimum 90%
Product Id:
S20-15QSF
Interior Pipe Dia:
4"
Cover Material:
Ductile Iron
Top Type:
Queen Top
Body Type:
Fluted
Crash Rating:
S20- 5,000 lb vehicle @ 20 mph
Penetration:
P1 - less than 1 meter beyond barrier
Country of Origin:
100% Made in USA, BABA Compliant
Recycled Content:
Minimum 90%
Product Id:

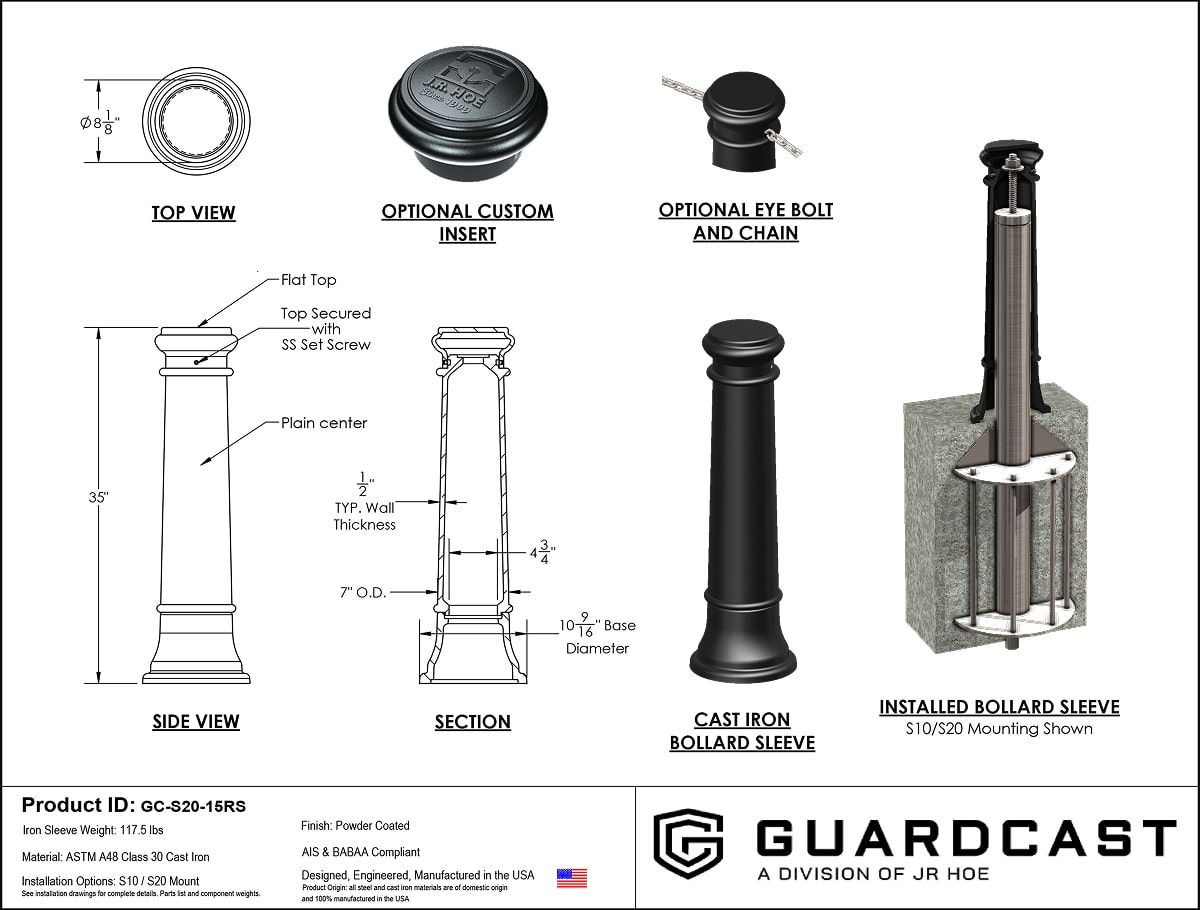

S20-15RS
Interior Pipe Dia:
4"
Cover Material:
Ductile Iron
Top Type:
Flat Top
Body Type:
Plain
Crash Rating:
S20- 5,000 lb vehicle @ 20 mph
Penetration:
P1 - less than 1 meter beyond barrier
Country of Origin:
100% Made in USA, BABA Compliant
Recycled Content:
Minimum 90%
Product Id:
S20-15RSF
Interior Pipe Dia:
4"
Cover Material:
Ductile Iron
Top Type:
Flat Top
Body Type:
Fluted
Crash Rating:
S20- 5,000 lb vehicle @ 20 mph
Penetration:
P1 - less than 1 meter beyond barrier
Country of Origin:
100% Made in USA, BABA Compliant
Recycled Content:
Minimum 90%
Product Id:
S20-15DS
Interior Pipe Dia:
4"
Cover Material:
Ductile Iron
Top Type:
Dome Top
Body Type:
Plain
Crash Rating:
S20- 5,000 lb vehicle @ 20 mph
Penetration:
P1 - less than 1 meter beyond barrier
Country of Origin:
100% Made in USA, BABA Compliant
Recycled Content:
Minimum 90%
Product Id:

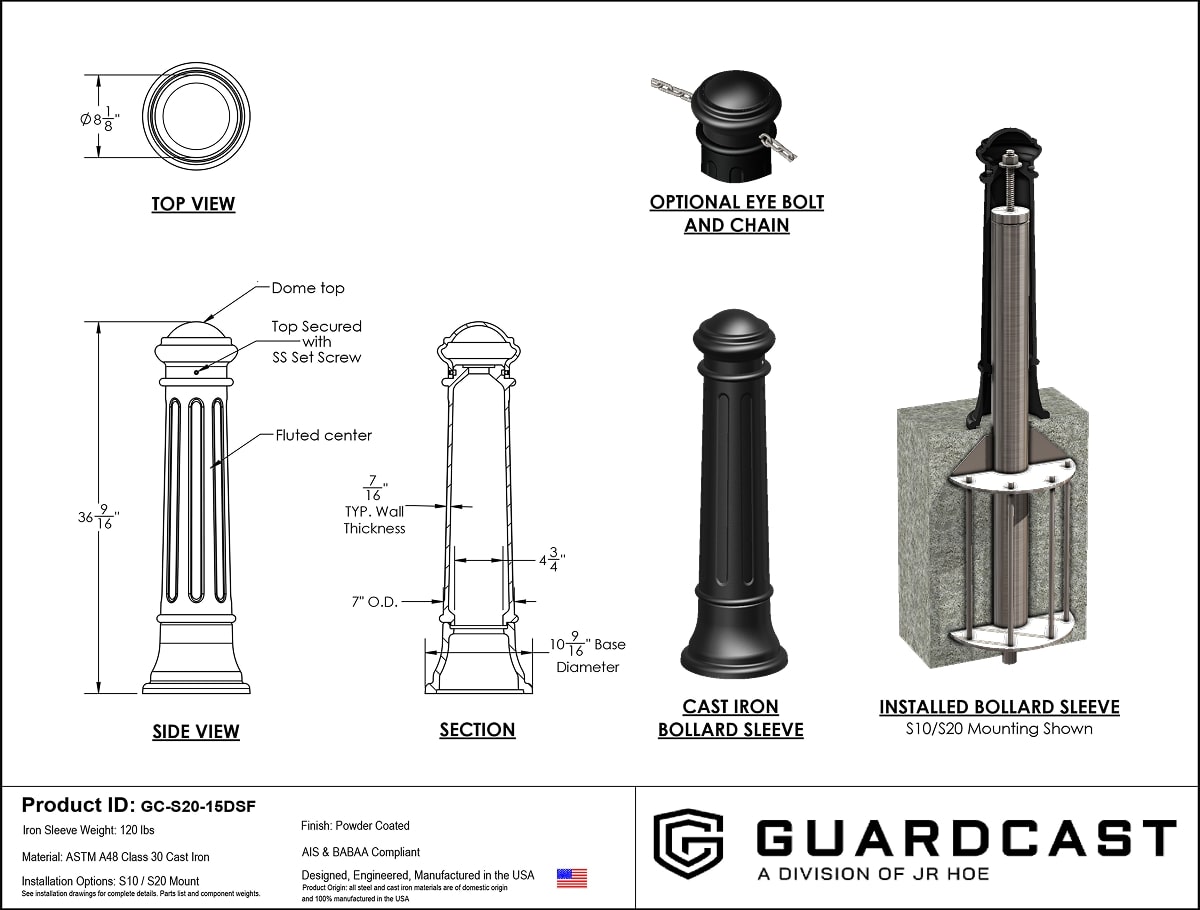

S20-15DSF
Interior Pipe Dia:
4"
Cover Material:
Ductile Iron
Top Type:
Dome Top
Body Type:
Fluted
Crash Rating:
S20- 5,000 lb vehicle @ 20 mph
Penetration:
P1 - less than 1 meter beyond barrier
Country of Origin:
100% Made in USA, BABA Compliant
Recycled Content:
Minimum 90%
Product Id:
S20-15HS
Interior Pipe Dia:
4"
Cover Material:
Ductile Iron
Top Type:
Hexagonal Top
Body Type:
Plain
Crash Rating:
S20- 5,000 lb vehicle @ 20 mph
Penetration:
P1 - less than 1 meter beyond barrier
Country of Origin:
100% Made in USA, BABA Compliant
Recycled Content:
Minimum 90%
Product Id:
S20-15HSF
Interior Pipe Dia:
4"
Cover Material:
Ductile Iron
Top Type:
Hexagonal Top
Body Type:
Fluted
Crash Rating:
S20- 5,000 lb vehicle @ 20 mph
Penetration:
P1 - less than 1 meter beyond barrier
Country of Origin:
100% Made in USA, BABA Compliant
Recycled Content:
Minimum 90%
Product Id:
S20-16GP
Interior Pipe Dia:
4"
Cover Material:
Ductile Iron
Top Type:
Globe Top
Body Type:
Plain
Crash Rating:
S20- 5,000 lb vehicle @ 20 mph
Penetration:
P1 - less than 1 meter beyond barrier
Country of Origin:
100% Made in USA, BABA Compliant
Recycled Content:
Minimum 90%
Product Id:
S20-16GPF
Interior Pipe Dia:
4"
Cover Material:
Ductile Iron
Top Type:
Queen Top
Body Type:
Fluted
Crash Rating:
S20- 5,000 lb vehicle @ 20 mph
Penetration:
P1 - less than 1 meter beyond barrier
Country of Origin:
100% Made in USA, BABA Compliant
Recycled Content:
Minimum 90%
Product Id:
S20-16RP
Interior Pipe Dia:
4"
Cover Material:
Ductile Iron
Top Type:
Flat Top
Body Type:
Plain
Crash Rating:
S20- 5,000 lb vehicle @ 20 mph
Penetration:
P1 - less than 1 meter beyond barrier
Country of Origin:
100% Made in USA, BABA Compliant
Recycled Content:
Minimum 90%
Product Id:

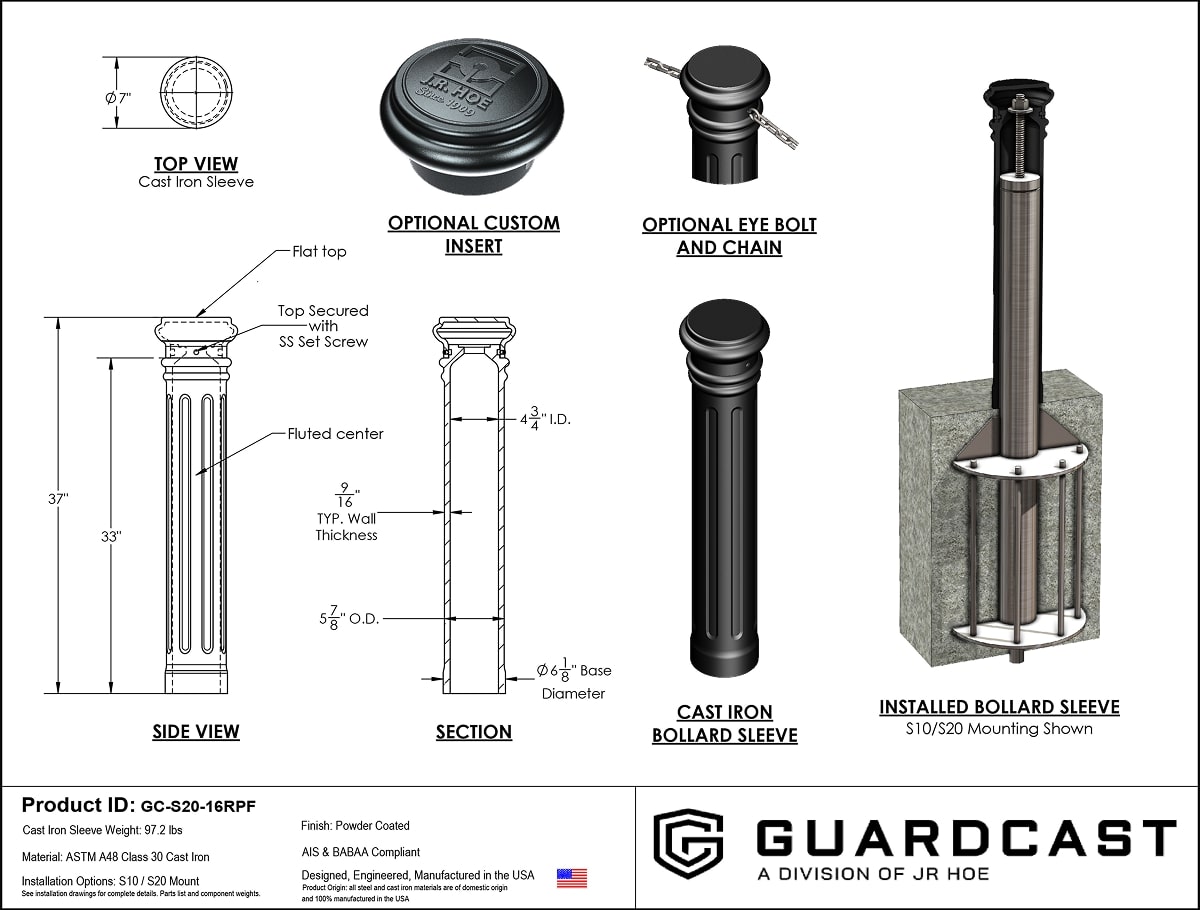

S20-16RPF
Interior Pipe Dia:
4"
Cover Material:
Ductile Iron
Top Type:
Flat Top
Body Type:
Fluted
Crash Rating:
S20- 5,000 lb vehicle @ 20 mph
Penetration:
P1 - less than 1 meter beyond barrier
Country of Origin:
100% Made in USA, BABA Compliant
Recycled Content:
Minimum 90%
Product Id:

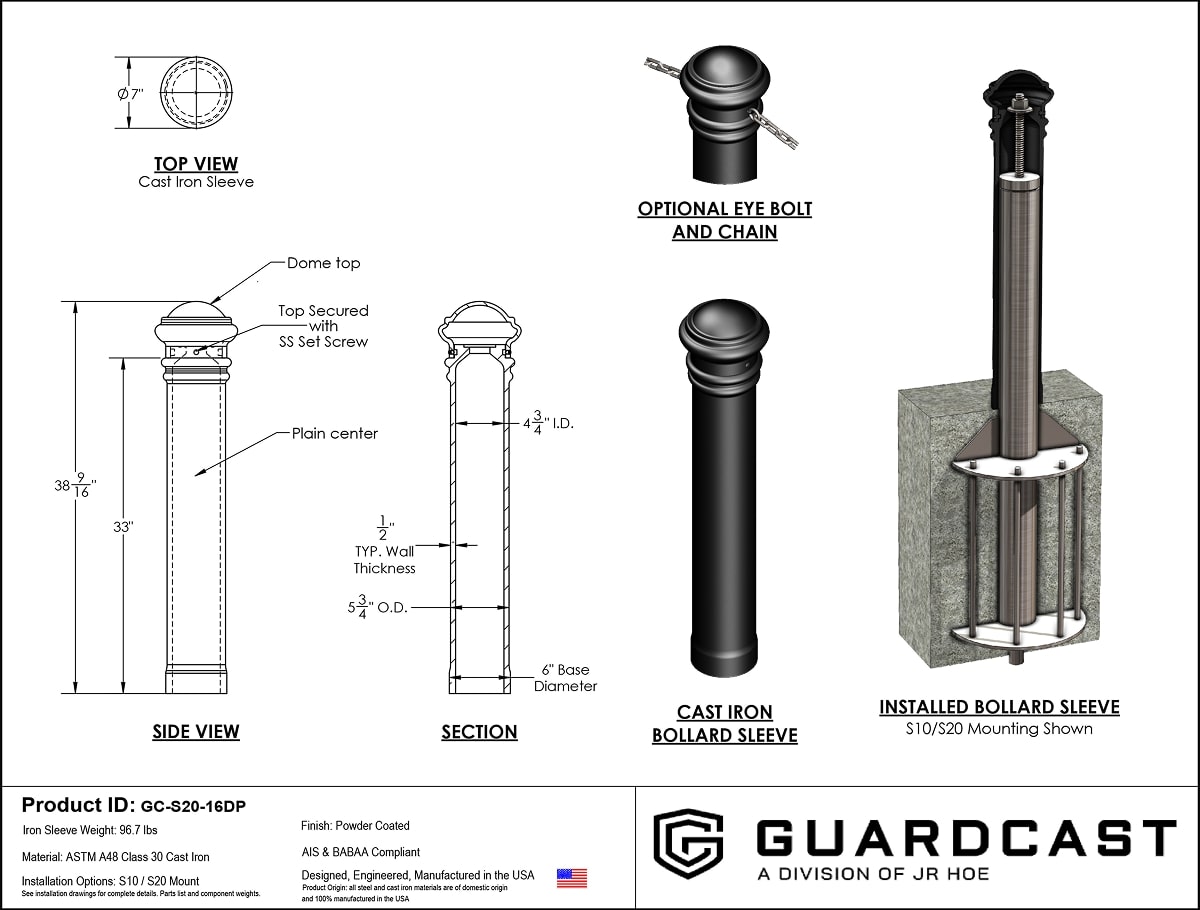

S20-16DP
Interior Pipe Dia:
4"
Cover Material:
Ductile Iron
Top Type:
Dome Top
Body Type:
Plain
Crash Rating:
S20- 5,000 lb vehicle @ 20 mph
Penetration:
P1 - less than 1 meter beyond barrier
Country of Origin:
100% Made in USA, BABA Compliant
Recycled Content:
Minimum 90%

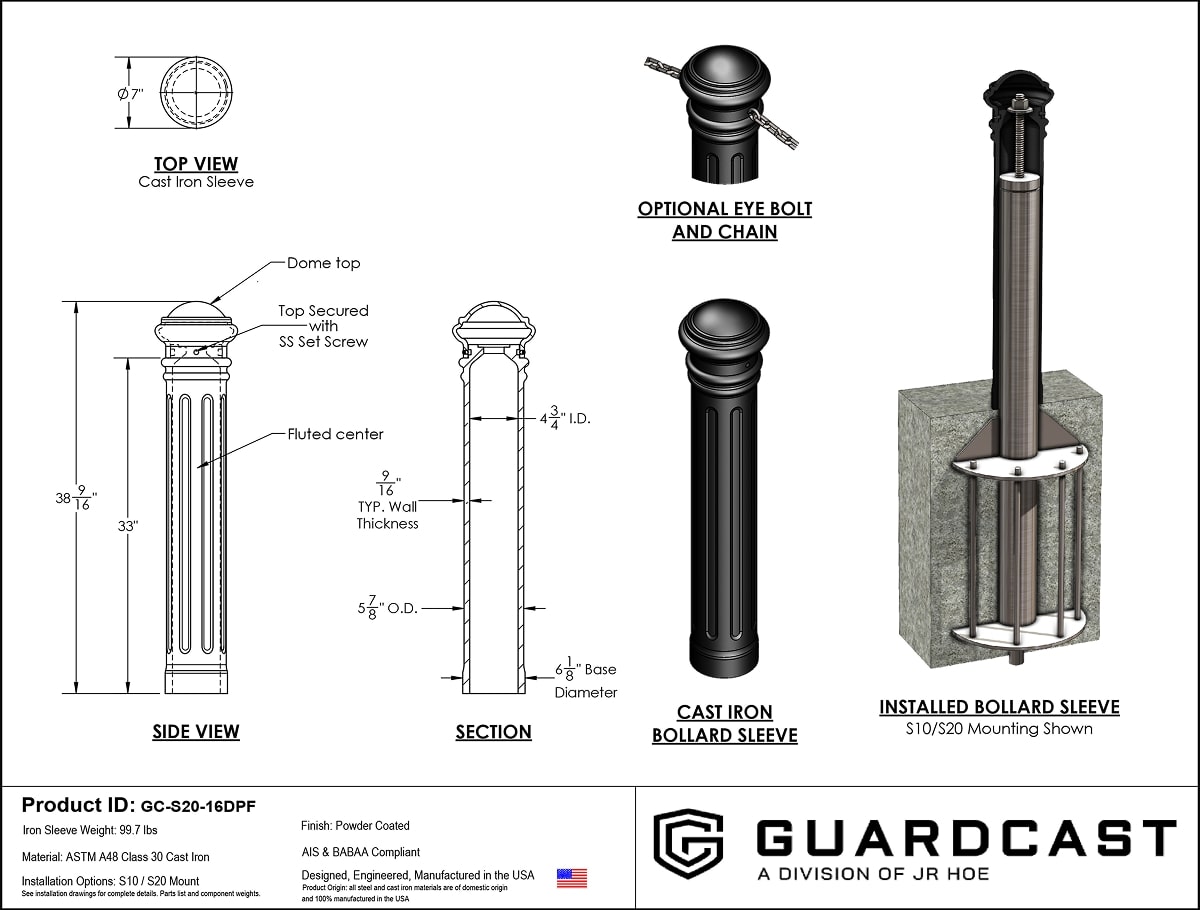

Product Id:
S20-16DPF
Interior Pipe Dia:
4"
Cover Material:
Ductile Iron
Top Type:
Dome Top
Body Type:
Fluted
Crash Rating:
S20- 5,000 lb vehicle @ 20 mph
Penetration:
P1 - less than 1 meter beyond barrier
Country of Origin:
100% Made in USA, BABA Compliant
Recycled Content:
Minimum 90%
Product Id:

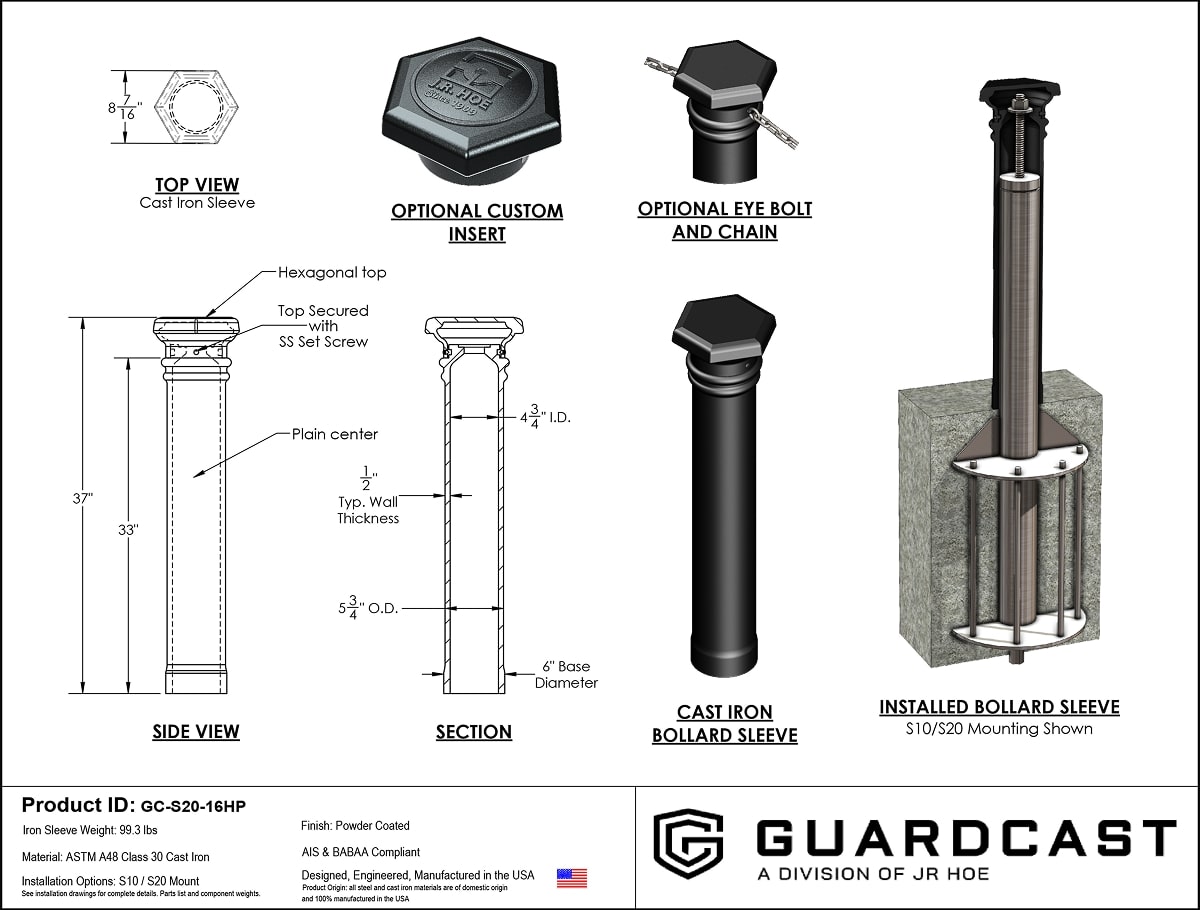

S20-16HP
Interior Pipe Dia:
4"
Cover Material:
Ductile Iron
Top Type:
Hexagonal Top
Body Type:
Plain
Crash Rating:
S20- 5,000 lb vehicle @ 20 mph
Penetration:
P1 - less than 1 meter beyond barrier
Country of Origin:
100% Made in USA, BABA Compliant
Recycled Content:
Minimum 90%
Product Id:

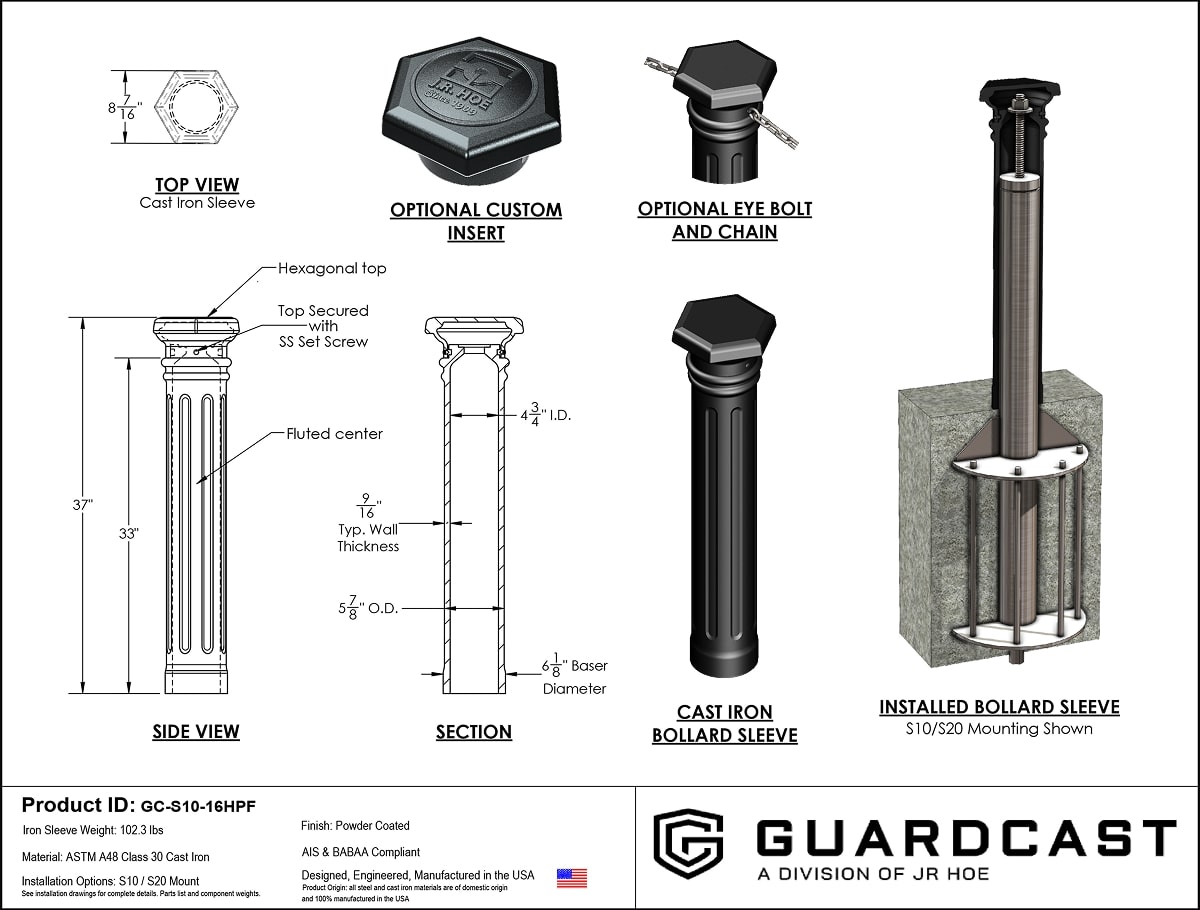

S20-16HPF
Interior Pipe Dia:
4"
Cover Material:
Ductile Iron
Top Type:
Hexagonal Top
Body Type:
Fluted
Crash Rating:
S20- 5,000 lb vehicle @ 20 mph
Penetration:
P1 - less than 1 meter beyond barrier
Country of Origin:
100% Made in USA, BABA Compliant
Recycled Content:
Minimum 90%
Product Id:
S20-16GB
Interior Pipe Dia:
4"
Cover Material:
Ductile Iron
Top Type:
Globe Top
Body Type:
Double Bike Arm
Crash Rating:
S20- 5,000 lb vehicle @ 20 mph
Penetration:
P1 - less than 1 meter beyond barrier
Country of Origin:
100% Made in USA, BABA Compliant
Recycled Content:
Minimum 90%
Product Id:
S20-16RB
Interior Pipe Dia:
4"
Cover Material:
Ductile Iron
Top Type:
Flat Top
Body Type:
Double Bike Arm
Crash Rating:
S20- 5,000 lb vehicle @ 20 mph
Penetration:
P1 - less than 1 meter beyond barrier
Country of Origin:
100% Made in USA, BABA Compliant
Recycled Content:
Minimum 90%
Product Id:

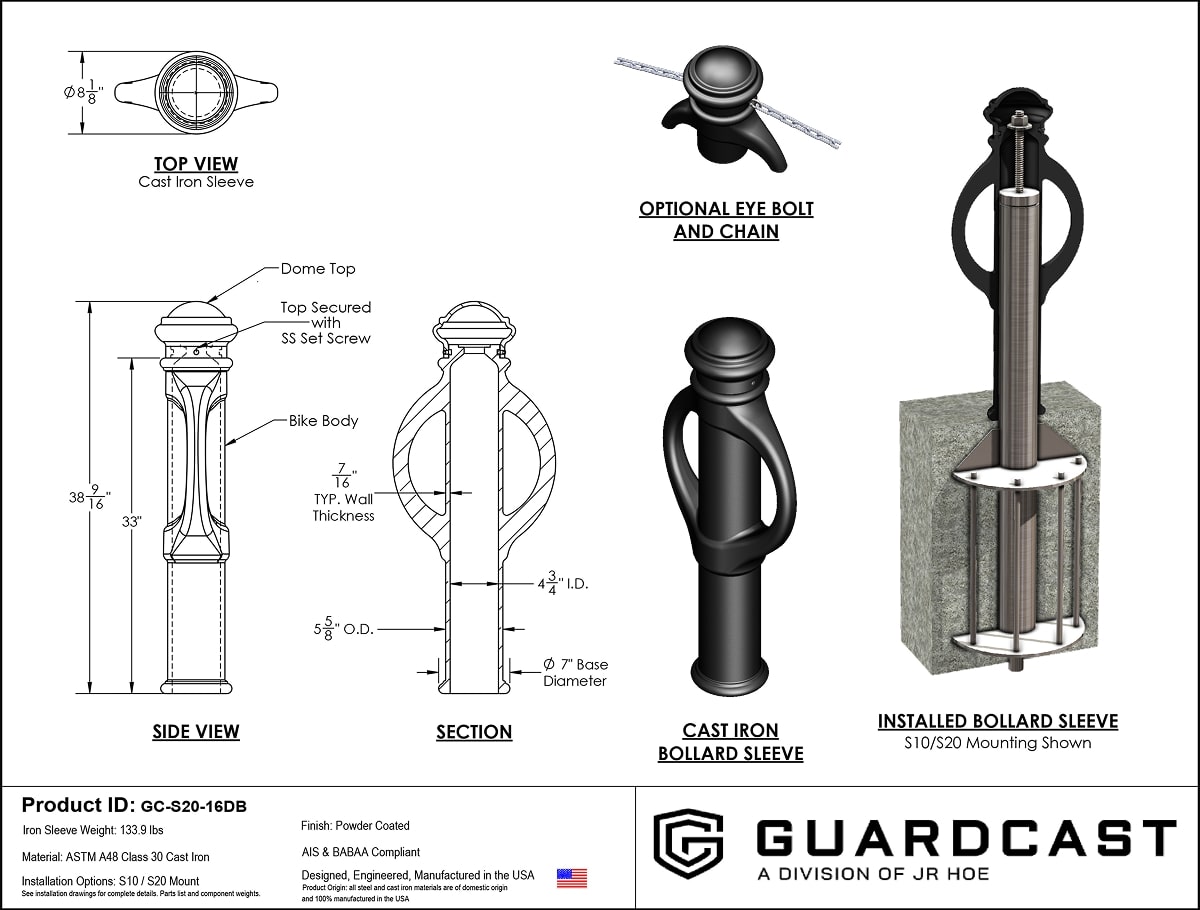

S20-16DB
Interior Pipe Dia:
4"
Cover Material:
Ductile Iron
Top Type:
Dome Top
Body Type:
Double Bike Arm
Crash Rating:
S20- 5,000 lb vehicle @ 20 mph
Penetration:
P1 - less than 1 meter beyond barrier
Country of Origin:
100% Made in USA, BABA Compliant
Recycled Content:
Minimum 90%
Product Id:

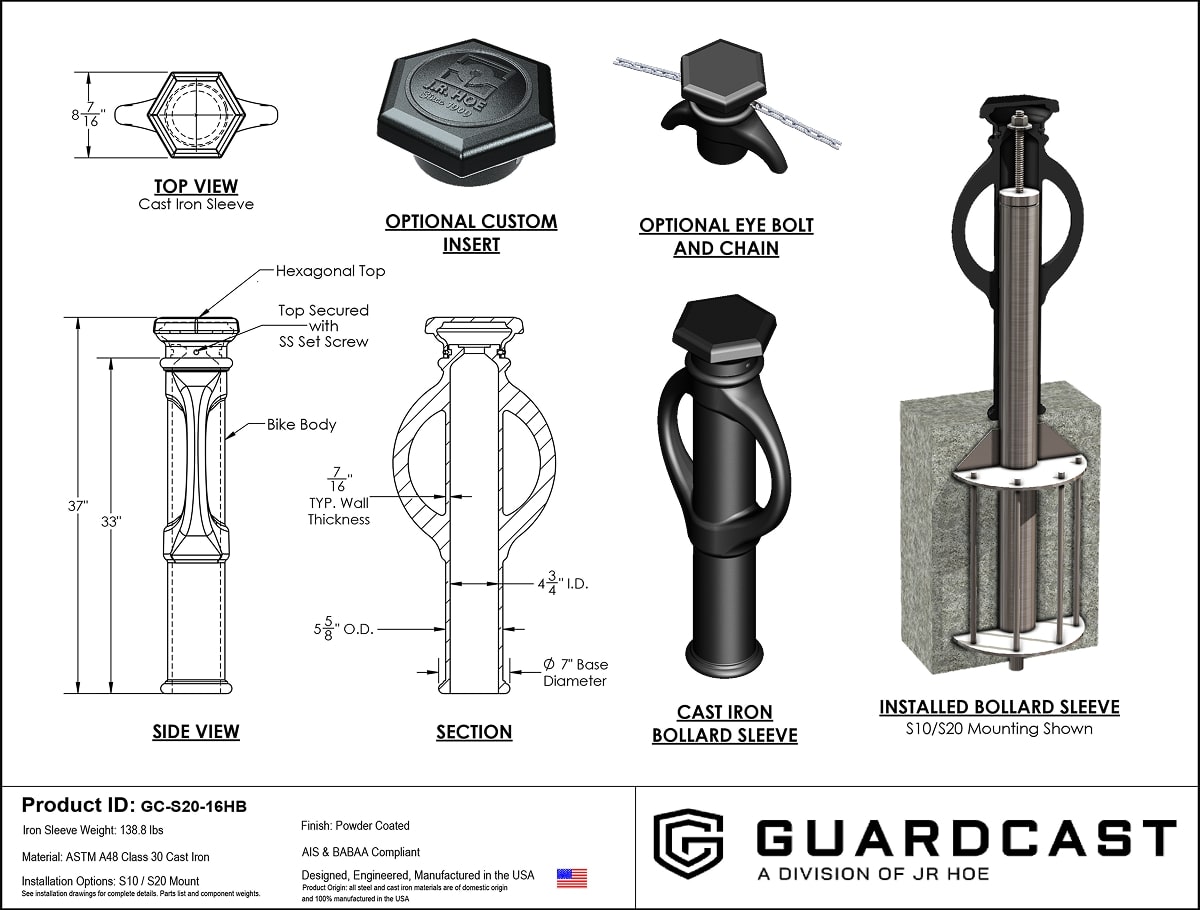

S20-16HB
Interior Pipe Dia:
4"
Cover Material:
Ductile Iron
Top Type:
Hexagonal Top
Body Type:
Double Bike Arm
Crash Rating:
S20- 5,000 lb vehicle @ 20 mph
Penetration:
P1 - less than 1 meter beyond barrier
Country of Origin:
100% Made in USA, BABA Compliant
Recycled Content:
Minimum 90%
Product Id:

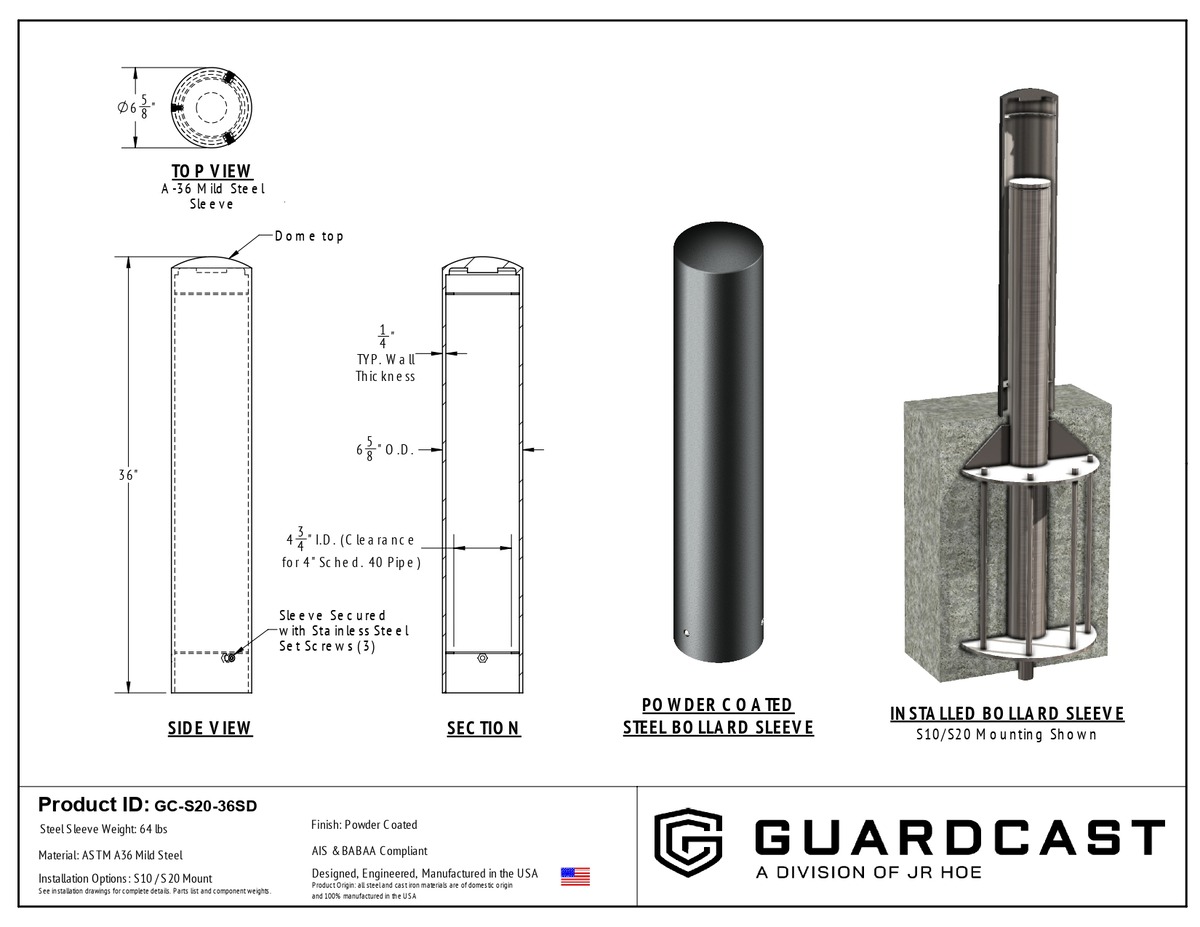

S20-36SD
Interior Pipe Dia:
4"
Cover Material:
Carbon Steel
Top Type:
Dome Top
Body Type:
Plain
Crash Rating:
S20- 5,000 lb vehicle @ 20 mph
Penetration:
P1 - less than 1 meter beyond barrier
Country of Origin:
100% Made in USA, BABA Compliant
Recycled Content:
Minimum 90%
Product Id:
S20-36SF
Interior Pipe Dia:
4"
Cover Material:
Carbon Steel
Top Type:
Flat Top
Body Type:
Plain
Crash Rating:
S20- 5,000 lb vehicle @ 20 mph
Penetration:
P1 - less than 1 meter beyond barrier
Country of Origin:
100% Made in USA, BABA Compliant
Recycled Content:
Minimum 90%
Product Id:

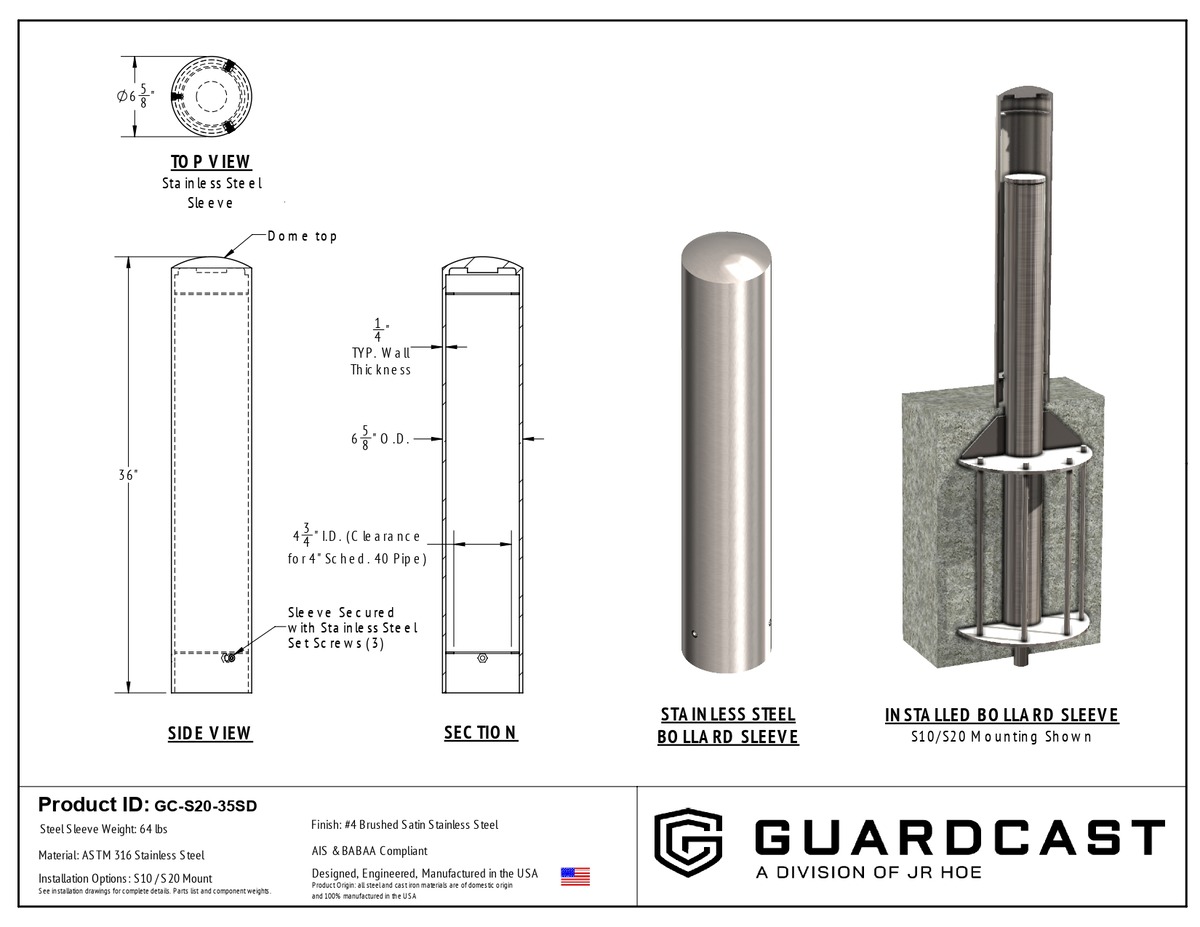

S20-35SD
Interior Pipe Dia:
4"
Cover Material:
Brushed Stainless Steel
Top Type:
Dome Top
Body Type:
Plain
Crash Rating:
S20- 5,000 lb vehicle @ 20 mph
Penetration:
P1 - less than 1 meter beyond barrier
Country of Origin:
100% Made in USA
Recycled Content:
Minimum 90%
Product Id:

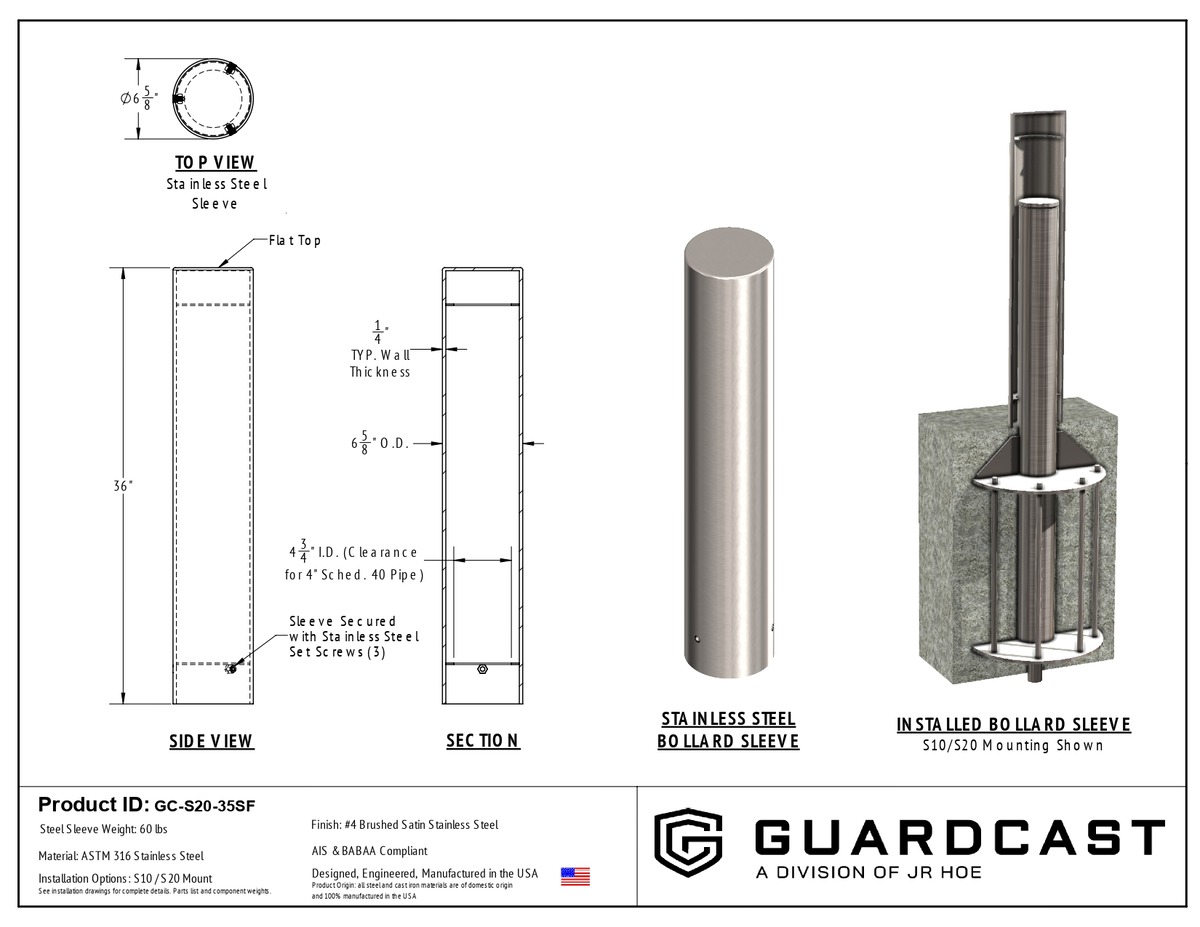

S20-35SF
Interior Pipe Dia:
4"
Cover Material:
Brushed Stainless Steel
Top Type:
Flat Top
Body Type:
Plain
Crash Rating:
S20- 5,000 lb vehicle @ 20 mph
Penetration:
P1 - less than 1 meter beyond barrier
Country of Origin:
100% Made in USA
Recycled Content:
Minimum 90%
Product Drawings
S20-15GS
S20-15GSF

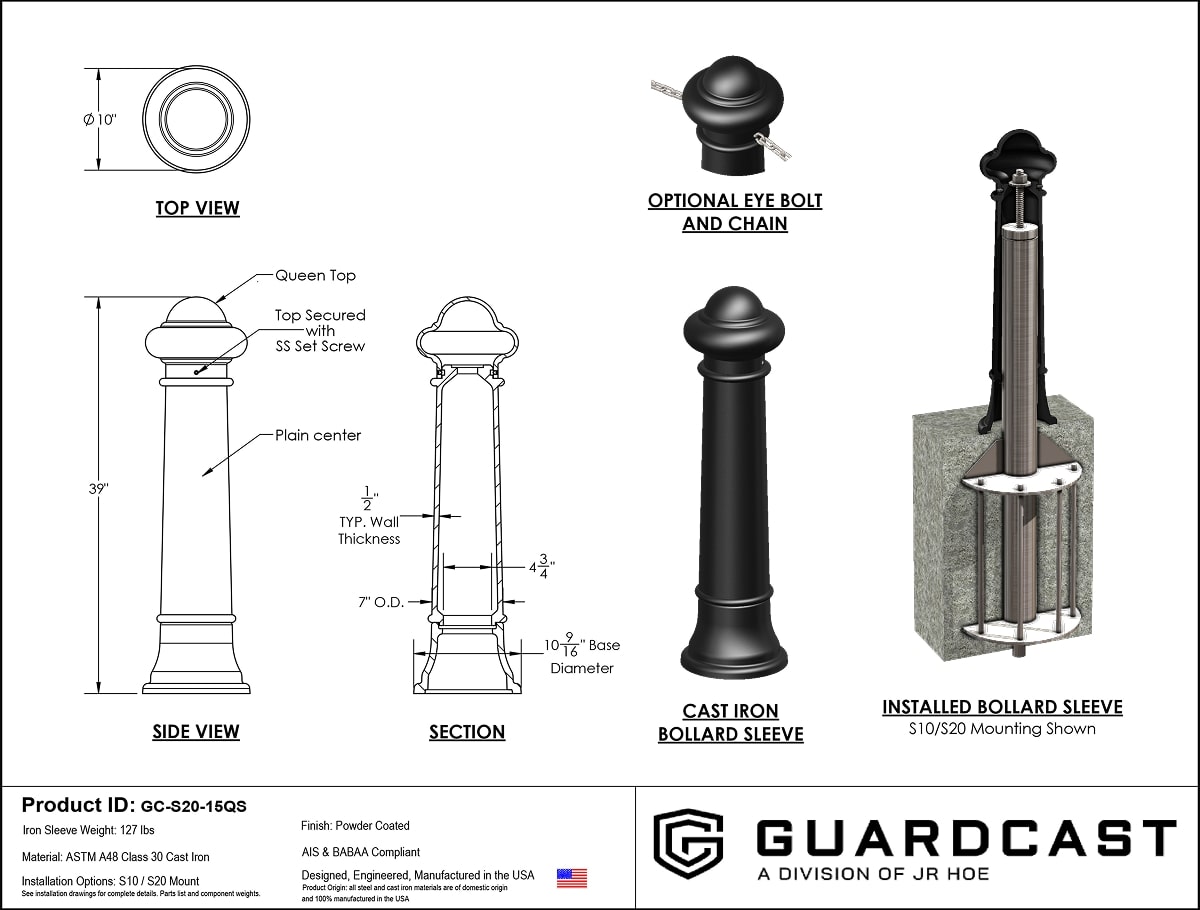

S20-15QS
S20-15QSF
S20-15RS
S20-15RSF

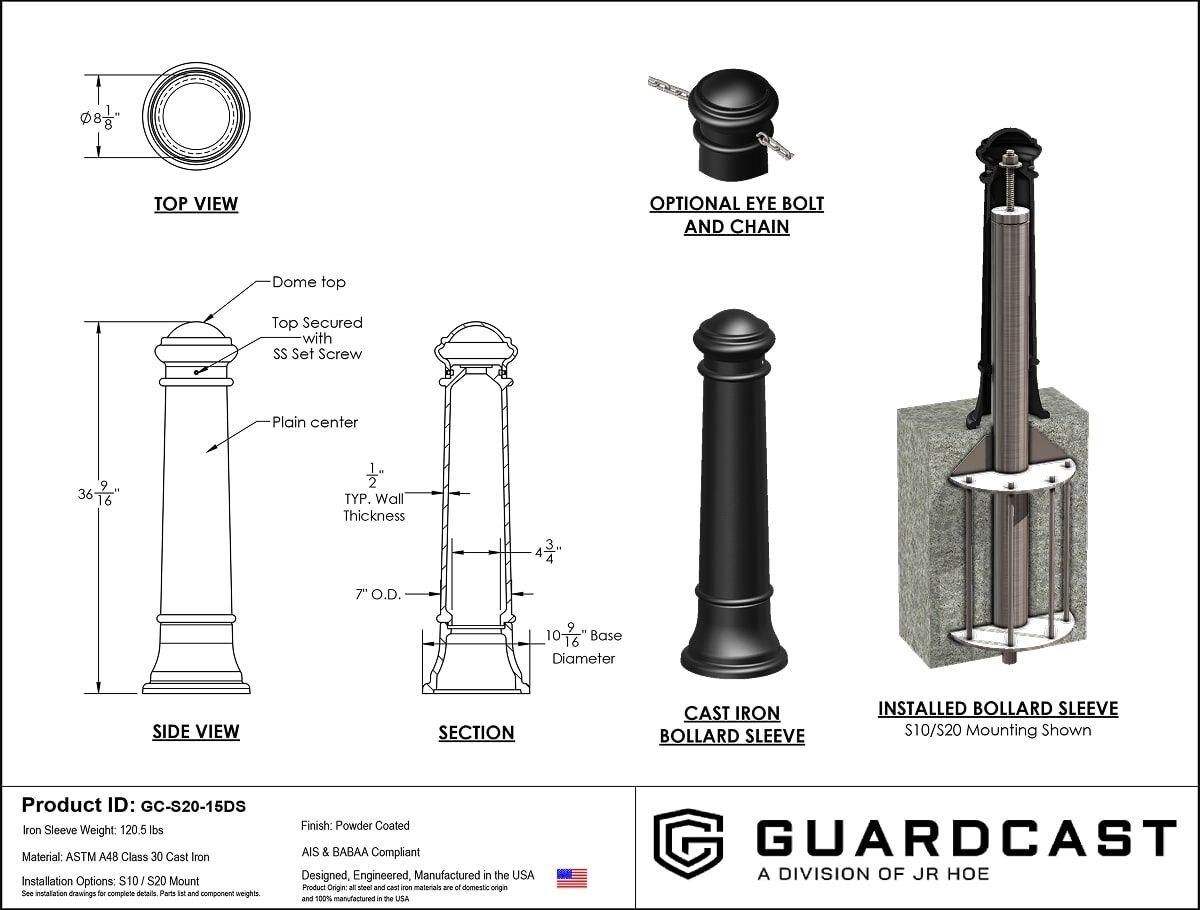

S20-15DS
S20-15DSF

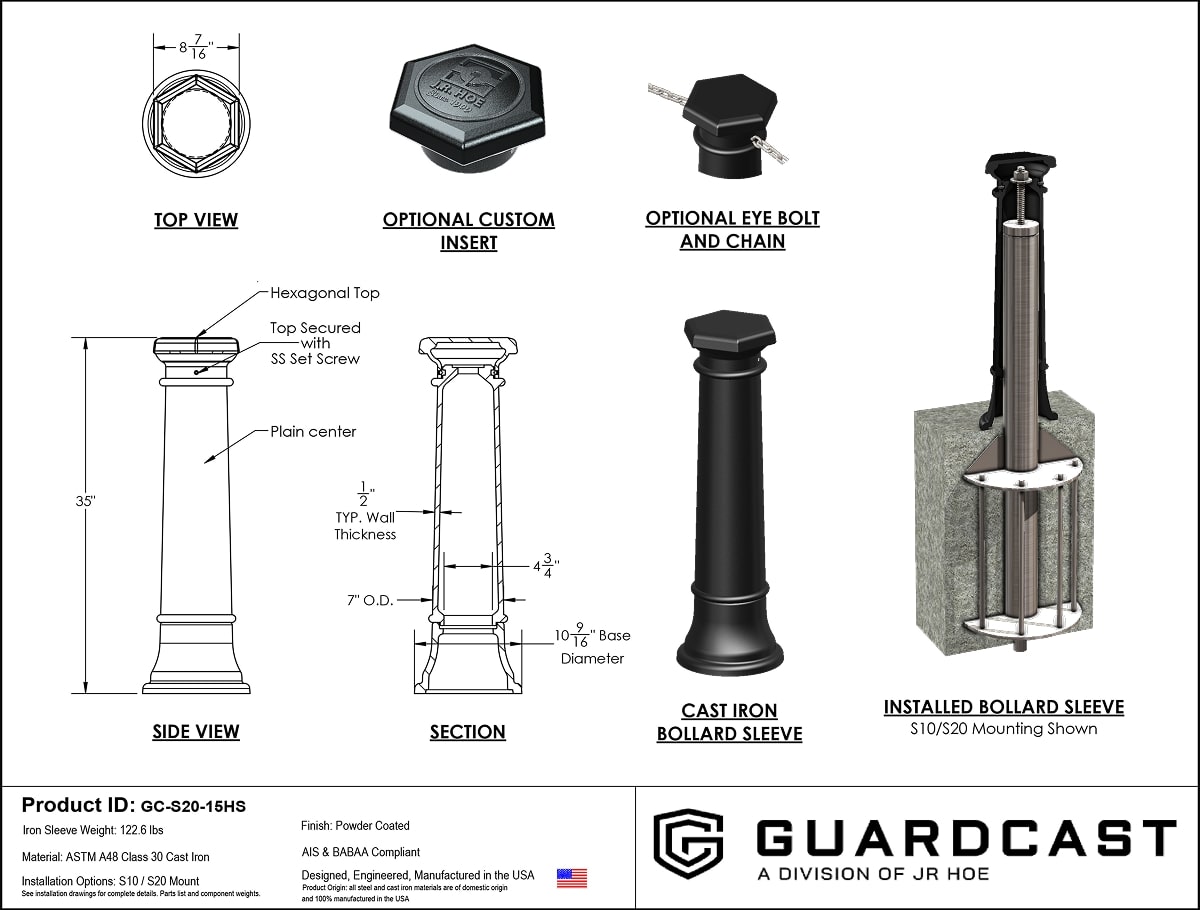

S20-15HS
S20-15HSF
S20-16GP

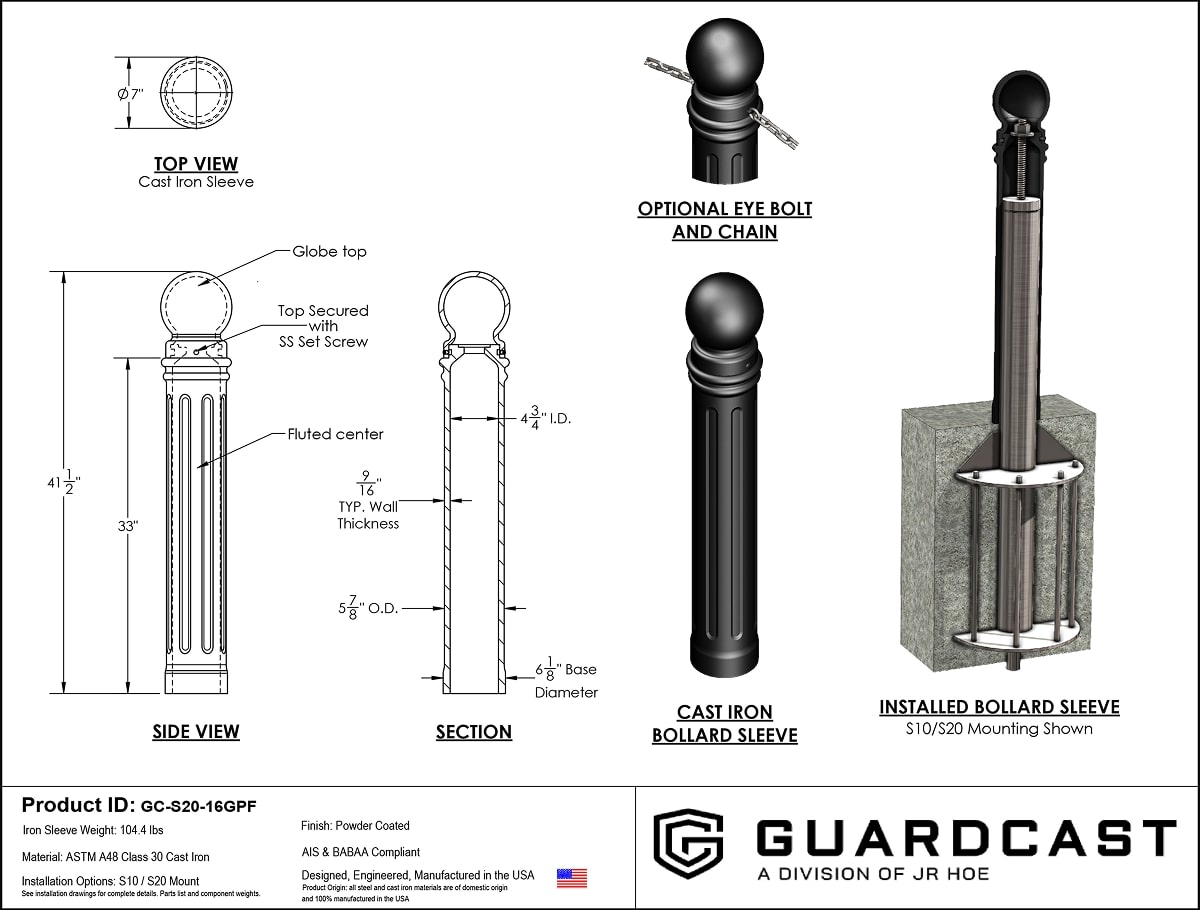

S20-16GPF
S20-16RP
Custom Sizes are available. Contact Us to discuss your project requirements.
