M40 Crash-Rated Bollards
This balance of strength and elegance makes the M40 bollard a versatile solution for demanding security applications without compromising aesthetic appeal. Engineered to withstand high-impact forces from vehicles traveling at impressive speeds, this bollard offers a truly formidable level of crash resistance. Coupled with its striking sleeves available in decorative iron, steel, and stainless steel finishes, it delivers robust protection while enhancing the architectural character of any site. For projects requiring uncompromising safety merged with sophisticated style, the M40 bollard is the definitive solution.
Domestic Manufacturing
100% Made in USA
Sleeve Versatility
Sleeves offered in decorative cast iron, powder coated steel or brushed stainless steel.
Crash Rated
M40/P1 - rated to stop a 15,000 lb vehicle traveling at 40 mph with less than 1 meter penetration
Product Id:
1M40S-DIF12
Interior Pipe Dia:
10"
Cover Material:
Ductile Iron
Top Type:
Flat Top
Body Type:
Fluted
Crash Rating:
M30- 15,000 lb vehicle @ 40 mph
Penetration:
P1 - less than 1 meter beyond barrier
Country of Origin:
100% Made in USA, BABA Compliant
Recycled Content:
Minimum 90%

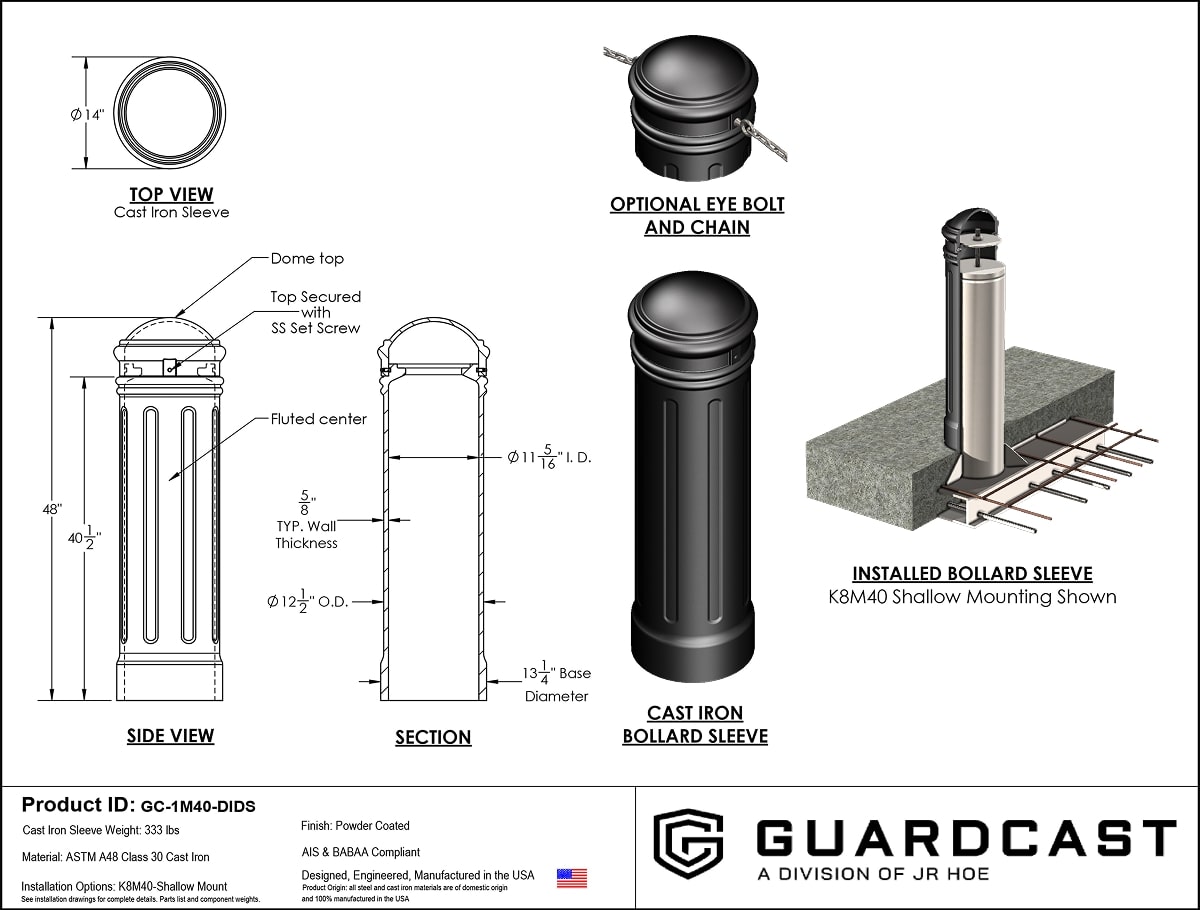

Product Id:
1M40S-DID12
Interior Pipe Dia:
10"
Cover Material:
Ductile Iron
Top Type:
Flat Top
Body Type:
Fluted
Crash Rating:
M30- 15,000 lb vehicle @ 40 mph
Penetration:
P1 - less than 1 meter beyond barrier
Country of Origin:
100% Made in USA, BABA Compliant
Recycled Content:
Minimum 90%
Product Id:
1M40S-DIH12
Interior Pipe Dia:
10"
Cover Material:
Ductile Iron
Top Type:
Hexagonal
Body Type:
Fluted
Crash Rating:
M30- 15,000 lb vehicle @ 40 mph
Penetration:
P1 - less than 1 meter beyond barrier
Country of Origin:
100% Made in USA, BABA Compliant
Recycled Content:
Minimum 90%
Product Id:
2M40D-DIF10
Interior Pipe Dia:
8"
Cover Material:
Ductile Iron
Top Type:
Flat Top
Body Type:
Fluted
Configuration:
2-Bollard Array; Max Spacing 52" OC
Crash Rating:
M30- 15,000 lb vehicle @ 40 mph
Penetration:
P1 - less than 1 meter beyond barrier
Country of Origin:
100% Made in USA, BABA Compliant
Recycled Content:
Minimum 90%
Product Id:
2M40D-DID10
Interior Pipe Dia:
8"
Cover Material:
Ductile Iron
Top Type:
Dome Top
Body Type:
Fluted
Configuration:
2-Bollard Array; Max Spacing 52" OC
Crash Rating:
M30- 15,000 lb vehicle @ 40 mph
Penetration:
P1 - less than 1 meter beyond barrier
Country of Origin:
100% Made in USA, BABA Compliant
Recycled Content:
Minimum 90%
Product Id:
2M40D-DIH10
Interior Pipe Dia:
8"
Cover Material:
Ductile Iron
Top Type:
Hexagonal
Body Type:
Fluted
Configuration:
2-Bollard Array; Max Spacing 52" OC
Crash Rating:
M30- 15,000 lb vehicle @ 40 mph
Penetration:
P1 - less than 1 meter beyond barrier
Country of Origin:
100% Made in USA, BABA Compliant
Recycled Content:
Minimum 90%
(Click on each of the drawings to learn more)

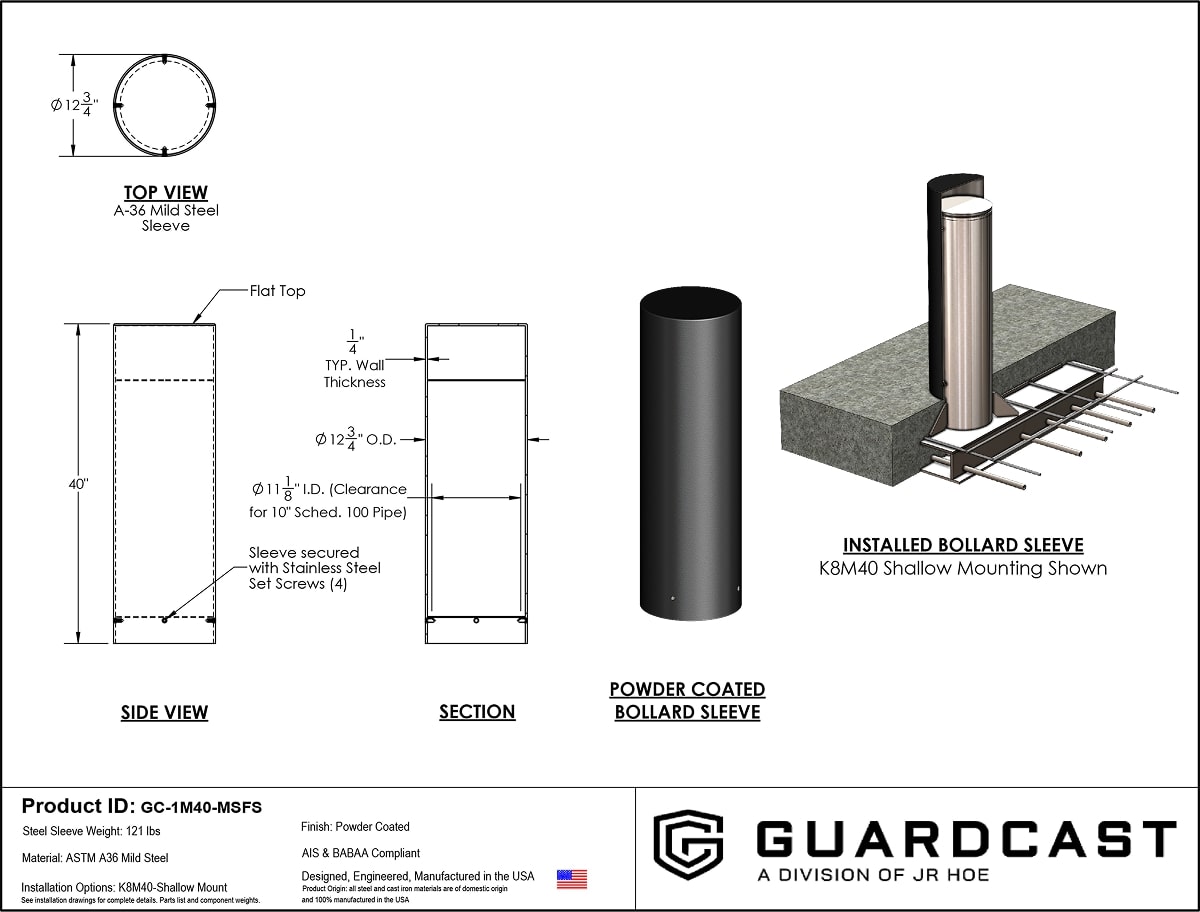

Product Id:
1M40S-MSF12
Interior Pipe Dia:
10"
Cover Material:
Carbon Steel
Top Type:
Flat
Body Type:
Plain
Crash Rating:
M30- 15,000 lb vehicle @ 40 mph
Penetration:
P1 - less than 1 meter beyond barrier
Country of Origin:
100% Made in USA, BABA Compliant
Recycled Content:
Minimum 90%

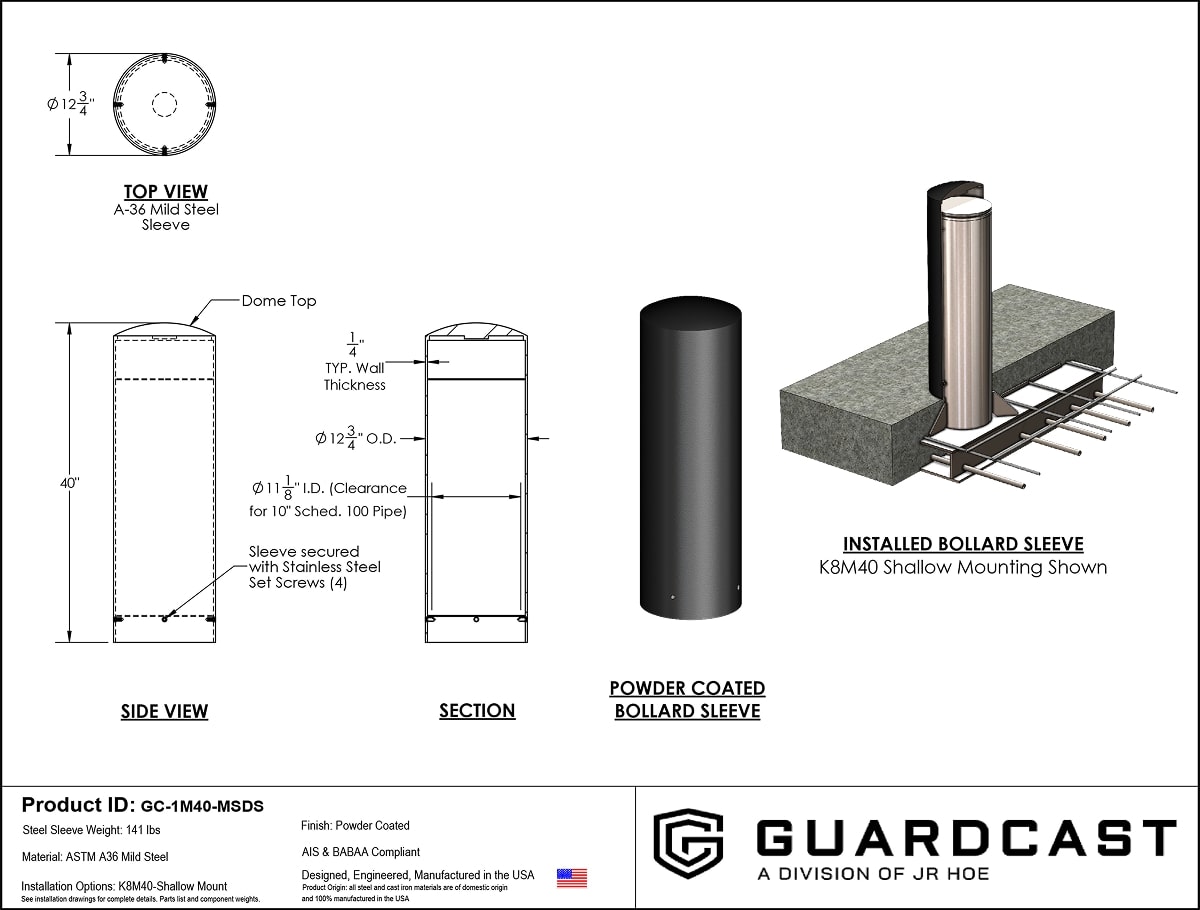

Product Id:
1M40S-MSD12
Interior Pipe Dia:
10"
Cover Material:
Carbon Steel
Top Type:
Dome
Body Type:
Plain
Crash Rating:
M30- 15,000 lb vehicle @ 40 mph
Penetration:
P1 - less than 1 meter beyond barrier
Country of Origin:
100% Made in USA, BABA Compliant
Recycled Content:
Minimum 90%
Product Id:
2M40D-MSF10
Interior Pipe Dia:
8"
Cover Material:
Carbon Steel
Top Type:
Flat
Body Type:
Plain
Configuration:
2-Bollard Array; Max Spacing 52" OC
Crash Rating:
M30- 15,000 lb vehicle @ 40 mph
Penetration:
P1 - less than 1 meter beyond barrier
Country of Origin:
100% Made in USA, BABA Compliant
Recycled Content:
Minimum 90%
Product Id:
2M40D-MSD10
Interior Pipe Dia:
8"
Cover Material:
Carbon Steel
Top Type:
Dome
Body Type:
Plain
Configuration:
2-Bollard Array; Max Spacing 52" OC
Crash Rating:
M30- 15,000 lb vehicle @ 40 mph
Penetration:
P1 - less than 1 meter beyond barrier
Country of Origin:
100% Made in USA, BABA Compliant
Recycled Content:
Minimum 90%
(Click on each of the drawings to learn more)

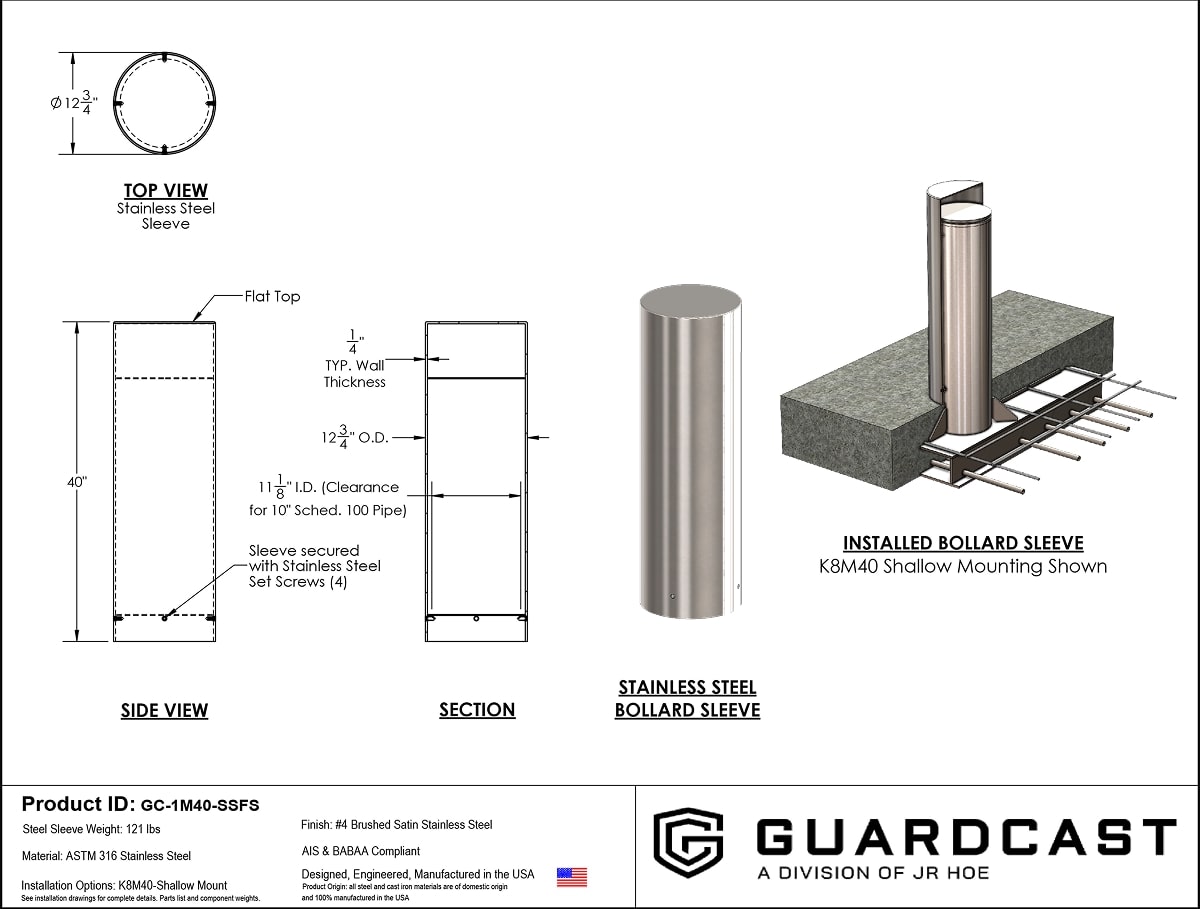

Product Id:
1M40S-SSF12
Interior Pipe Dia:
10"
Cover Material:
Brushed Stainless Steel
Top Type:
Flat
Body Type:
Plain
Crash Rating:
M30- 15,000 lb vehicle @ 40 mph
Penetration:
P1 - less than 1 meter beyond barrier
Country of Origin:
100% Made in USA, BABA Compliant
Recycled Content:
Minimum 90%
Product Id:

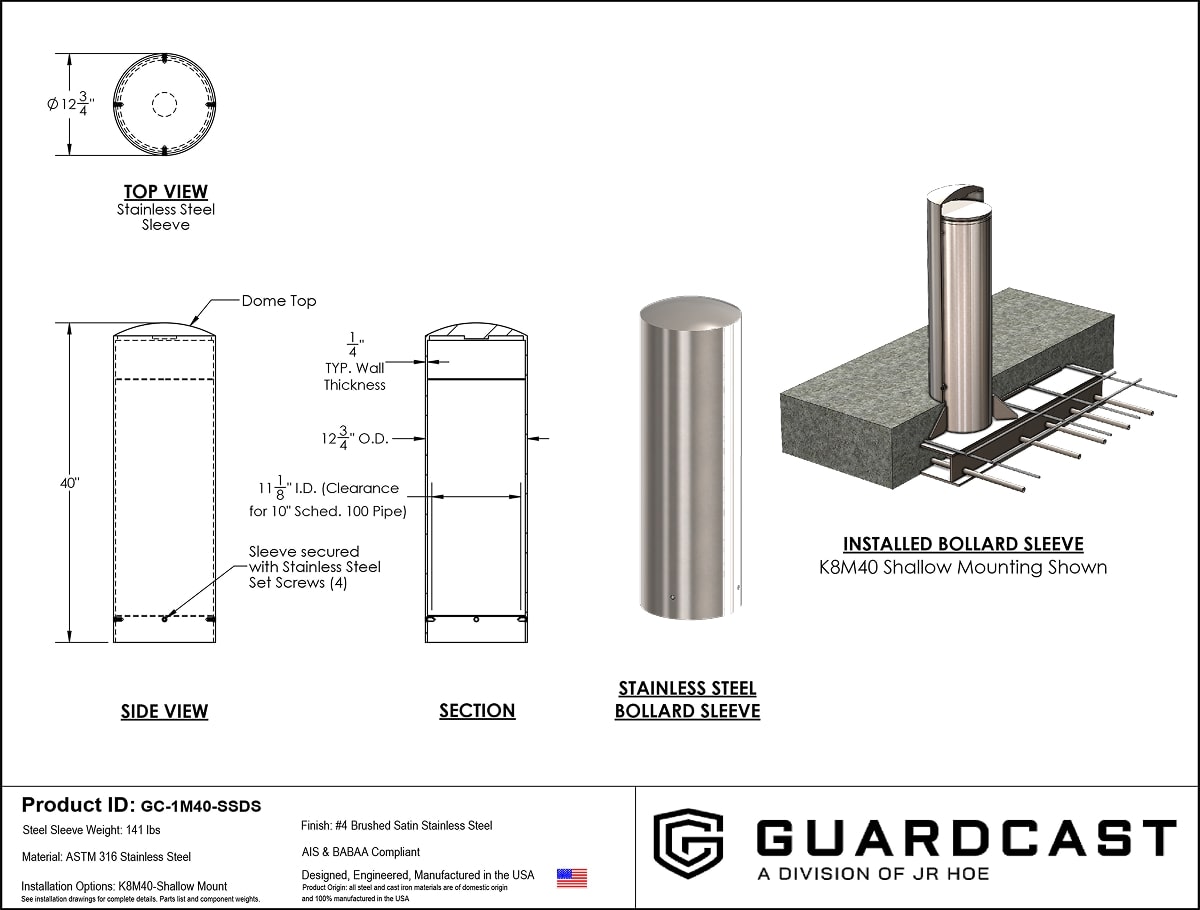

1M40S-SSD12
Interior Pipe Dia:
10"
Cover Material:
Brushed Stainless Steel
Top Type:
Dome
Body Type:
Plain
Crash Rating:
M30- 15,000 lb vehicle @ 40 mph
Penetration:
P1 - less than 1 meter beyond barrier
Country of Origin:
100% Made in USA, BABA Compliant
Recycled Content:
Minimum 90%
Product Id:
2M40D-SSF10
Interior Pipe Dia:
8"
Cover Material:
Brushed Stainless Steel
Top Type:
Flat
Body Type:
Plain
Configuration:
2-Bollard Array; Max Spacing 52" OC
Crash Rating:
M30- 15,000 lb vehicle @ 40 mph
Penetration:
P1 - less than 1 meter beyond barrier
Country of Origin:
100% Made in USA, BABA Compliant
Recycled Content:
Minimum 90%
Product Id:
2M40D-SSD10
Interior Pipe Dia:
8"
Cover Material:
Brushed Stainless Steel
Top Type:
Dome
Body Type:
Plain
Configuration:
2-Bollard Array; Max Spacing 52" OC
Crash Rating:
M30- 15,000 lb vehicle @ 40 mph
Penetration:
P1 - less than 1 meter beyond barrier
Country of Origin:
100% Made in USA, BABA Compliant
Recycled Content:
Minimum 90%
(Click on each of the drawings to learn more)
American-Made
Proudly made in America of domestically sourced materials, we bring over 100 years of craftsmanship and expertise to every project.
AISC Certified
J.R. Hoe strictly follows all AlSC standards in engineering and fabrication, enhancing every project with a commitment to quality, safety, expertise, and innovation.
CNC Manufacturing
The use of Computer Numerical Control (CNC) machine processes delivers unparalleled precision and versatility in fabricating both standard and custom trash racks.
Sustainability
Fabricated using recycled steel, all carbon steel drops, cut-offs and rejects are melted down and upcycled on-site into engineered iron castings for a wide range of industries.
